Surround-Style Dual-Platform Laser Cutting Machine
3000W–60000W
An enclosed, dual-exchange-table fiber laser cutter for sheet metal — from 3kW job-shop work to 60kW heavy plate — with a fully surrounded protective cover for operator safety and fume extraction.
- Flash Cutting — A leap in production capacity
- Machine Bed — High rigidity, low center of gravity
- Exchange Table — Dual-station intelligent switching
Why this machine
A leap in production capacity
Easy to learn and easy to run. For efficient processing of small and medium-sized sheet parts, the bus control system enables high-speed cutting that combines speed and precision — greatly reducing idle travel time between contours and achieving a leap in output per shift.
- EtherCAT bus control with optimized motion paths
- Flying-cut and common-edge cutting for nested parts
- Automatic nesting software included
High rigidity, low center of gravity
A heavy welded bed, stress-relieved after welding, with a low center of gravity holds its accuracy under high-acceleration motion — so cut quality stays consistent across the full table and over years of use.
- Annealed, precision-machined welded bed
- Rack-and-pinion drive with servo motors on every axis
- Positioning accuracy ±0.03mm
Dual-station intelligent switching
Two working platforms swap automatically: one sheet is cut while the next is loaded and finished parts are unloaded — keeping the laser cutting instead of waiting on material handling.
- Table exchange in seconds at the push of a button
- Fully enclosed cover with sectional fume extraction
- Safety light curtain at the loading side
Technical Parameters
- Power
- 6–40kW
- Processing Format
- 3060×1550mm
- Maximum Speed
- 200m/min
- Maximum Acceleration
- 4G
- Positioning Accuracy
- ±0.03mm
- Power
- 6–40kW
- Processing Format
- 4060×2050mm
- Maximum Speed
- 200m/min
- Maximum Acceleration
- 2.8G
- Positioning Accuracy
- ±0.03mm
- Power
- 6–40kW
- Processing Format
- 6150×2050mm
- Maximum Speed
- 200m/min
- Maximum Acceleration
- 2.8G
- Positioning Accuracy
- ±0.03mm
Need a different format or power level? Ask us — configurations can be matched to your material and output.
Maximum Cutting Thickness
Typical maximum cutting thickness by laser power. Production thickness — where edge quality and speed are best — is usually about 70% of these values.
| Material | 6kW | 12kW | 20kW | 40kW |
|---|---|---|---|---|
| Carbon Steel | 22mm | 30mm | 50mm | 80mm |
| Stainless Steel | 20mm | 35mm | 50mm | 70mm |
| Aluminum | 16mm | 30mm | 40mm | 60mm |
| Brass | 10mm | 16mm | 20mm | 30mm |
Reference values — actual results depend on material grade, assist gas and nozzle. Send us your material and we will cut samples. Request a sample test
Built on industrial-grade parts
Fiber Laser Source
High-power continuous fiber laser, 6–40kW, matched to your thickness range.

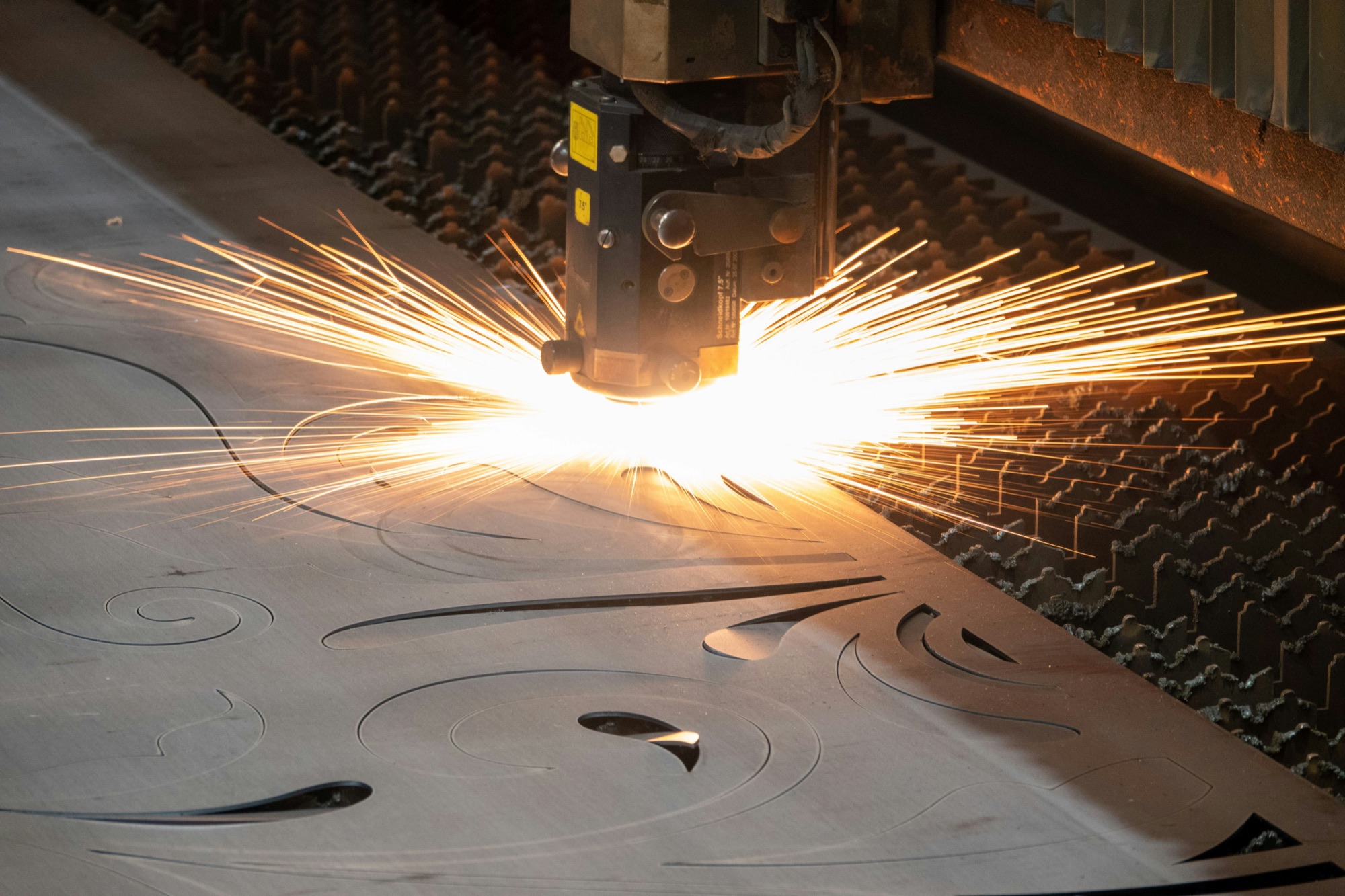

Auto-Focus Cutting Head
Automatic focus adjustment and height sensing for fast piercing and stable thick-plate cuts.
Bus CNC System
EtherCAT bus control with nesting software, edge finding and breakpoint recovery.
Dual Exchange Tables
Automatic platform exchange keeps loading and cutting running in parallel.
Where the G Series is used
Sheet Metal Fabrication
Job shops cutting enclosures, panels and brackets in mixed materials.
Machinery Manufacturing
Structural plates and frames for agricultural, construction and industrial machines.
Kitchenware & Appliances
Stainless panels and parts with clean edges ready for bending.
Automotive & Transport
Chassis parts, trailer components and body panels.
New Energy
Battery enclosures, solar mounting and electrical cabinets.
Construction & Signage
Steel structure plates, elevator panels and decorative metal.
G Series questions
Choose by the thickness you cut most often, not the maximum. For mostly 1–12mm sheet, 6kW is usually enough; for regular 20mm+ carbon steel or high-volume stainless, 12–20kW cuts much faster; 30kW and above is for heavy plate.
H3015 (3×1.5m) fits standard 1250/1500 sheets and small workshops. H4020 and H6020 take full-size 2m-wide sheets and long parts, and reduce sheet handling for large nests.
Oxygen for thick carbon steel, nitrogen for oxide-free stainless and aluminum edges, and compressed air as a low-cost option for thin sheet. We can advise on gas supply for your thickness range.
It depends on laser power and table size. We send a foundation drawing and electrical requirements with every quotation so you can prepare the site before delivery.
Yes — installation and commissioning support, operator and nesting-software training, and ongoing remote technical support.
